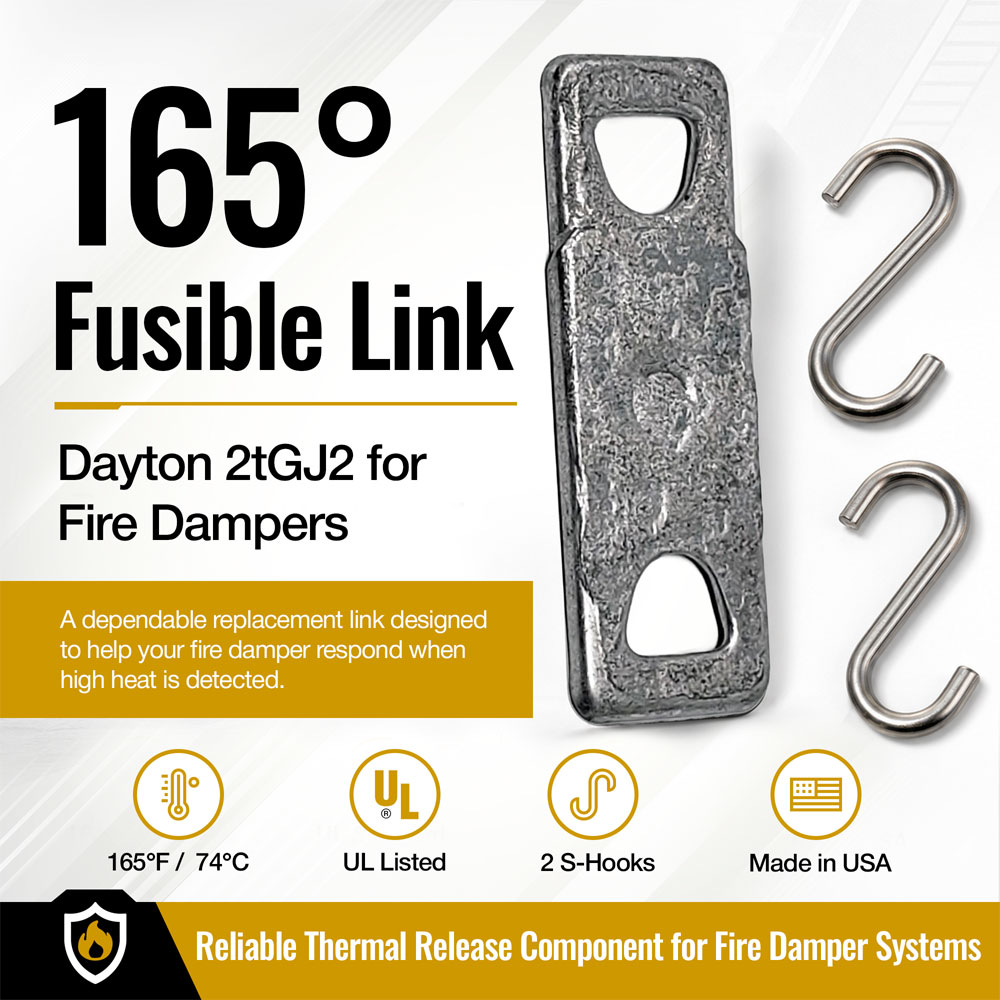

165 Degree Fusible Links Dayton 2TGJ2 for Fire Dampers
$12.99

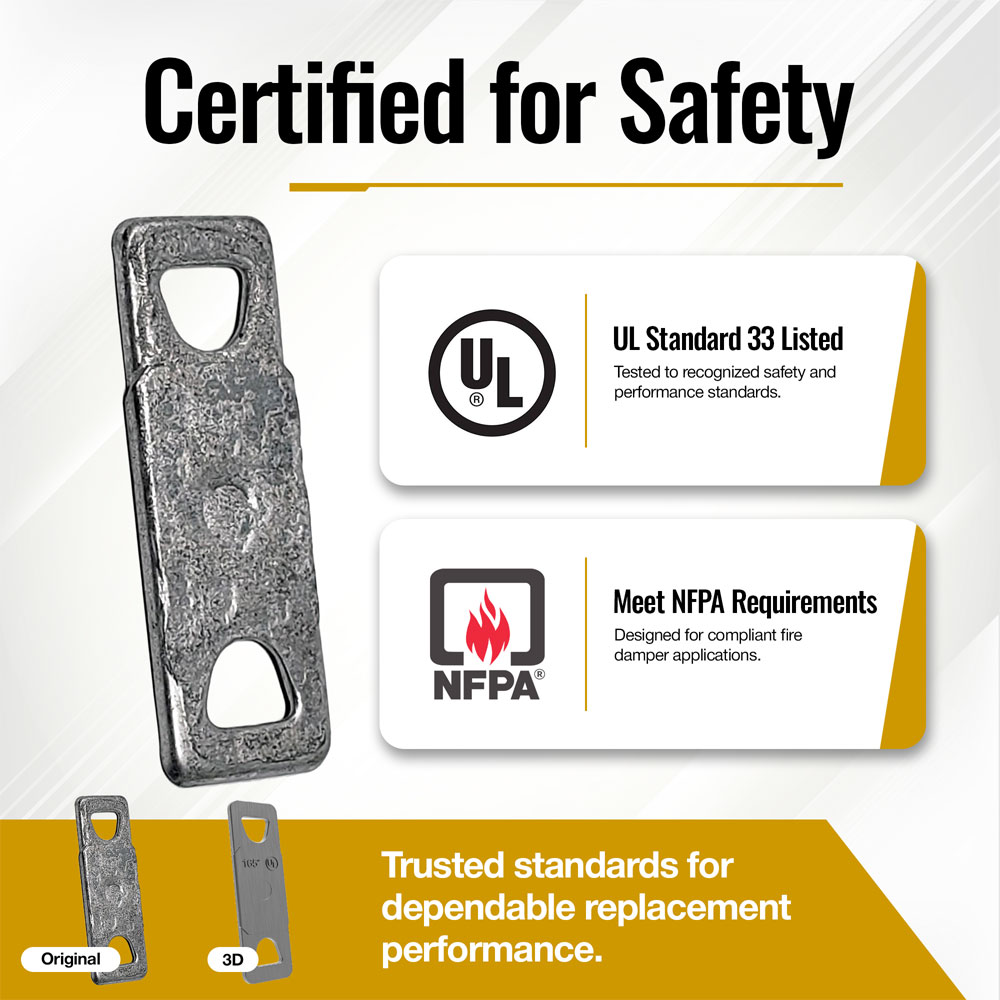

- TEMPERATURE = 165F (74C) / STANDARDS = UL Standard 33 (Underwriters Laboratory Listed)
- FITS: 2TGA1-2TGA9, 2TGC1-2TGC9, 2TGD1-2TGD9, 2TGE1-2TGE9, 2TGF1-2TGF9, 2TGG1-2TGG3 Dampers and more…
- SIZE: Length/Height = 2-3/4″ (2.75 Inches) AND Width = 1″ (1.0 Inches)
- BONUS: x2 Stainless Steel S Hooks. Meets NFPA requirements. UL Rated. Made in the USA.
- Pro Chutes Guarantee – BUY WITH CONFIDENCE – 3 Month “No Questions Asked”. Contact us directly because we aim to please. You are our priority!
164 in stock
Related to this item
Related to this item
Fusible Links
Fusible Links
Fusible Links
Product description

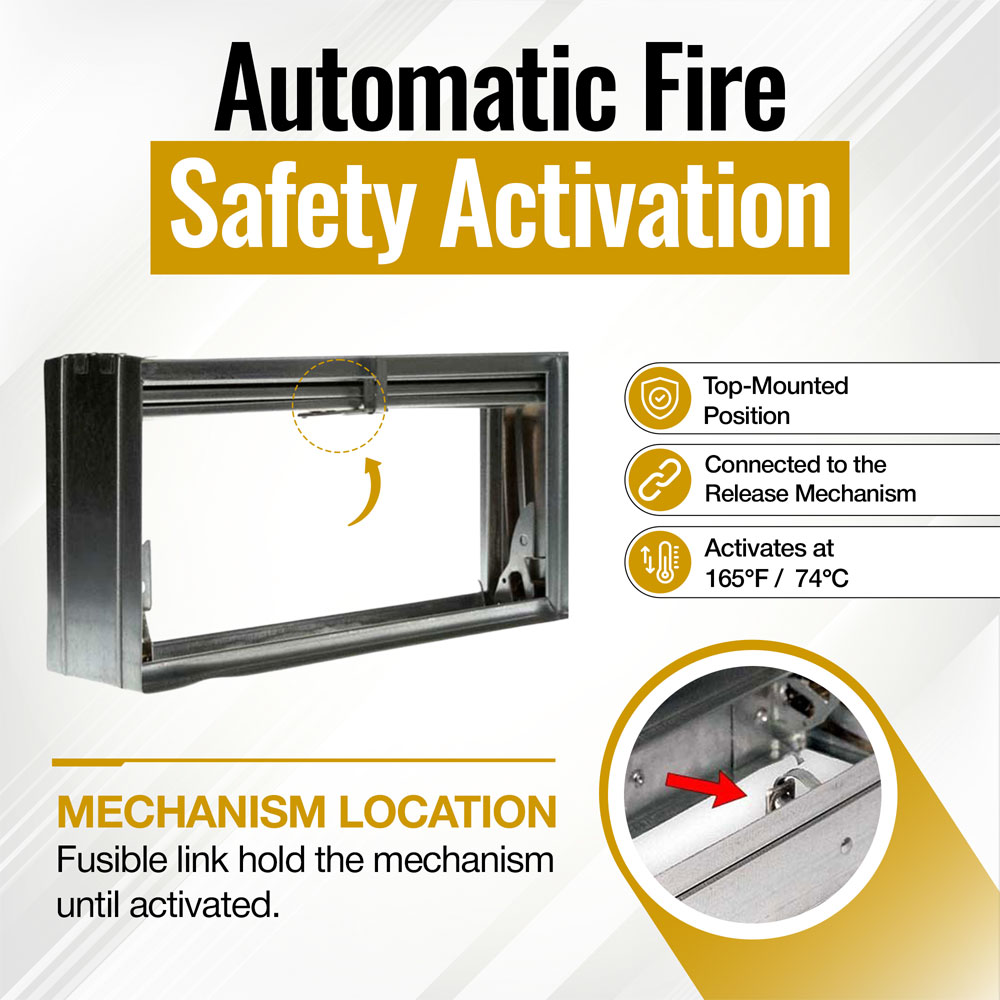

165 degree fusible links replacement part that is primarily used for fire dampers, and more popularly with the Dayton dampers that are intended to shut automatically to help prevent the spread of flames and smoke with the help of this fusible link that melts at 165 degrees fahrenheit.
Bonus 165 degree fusible links:

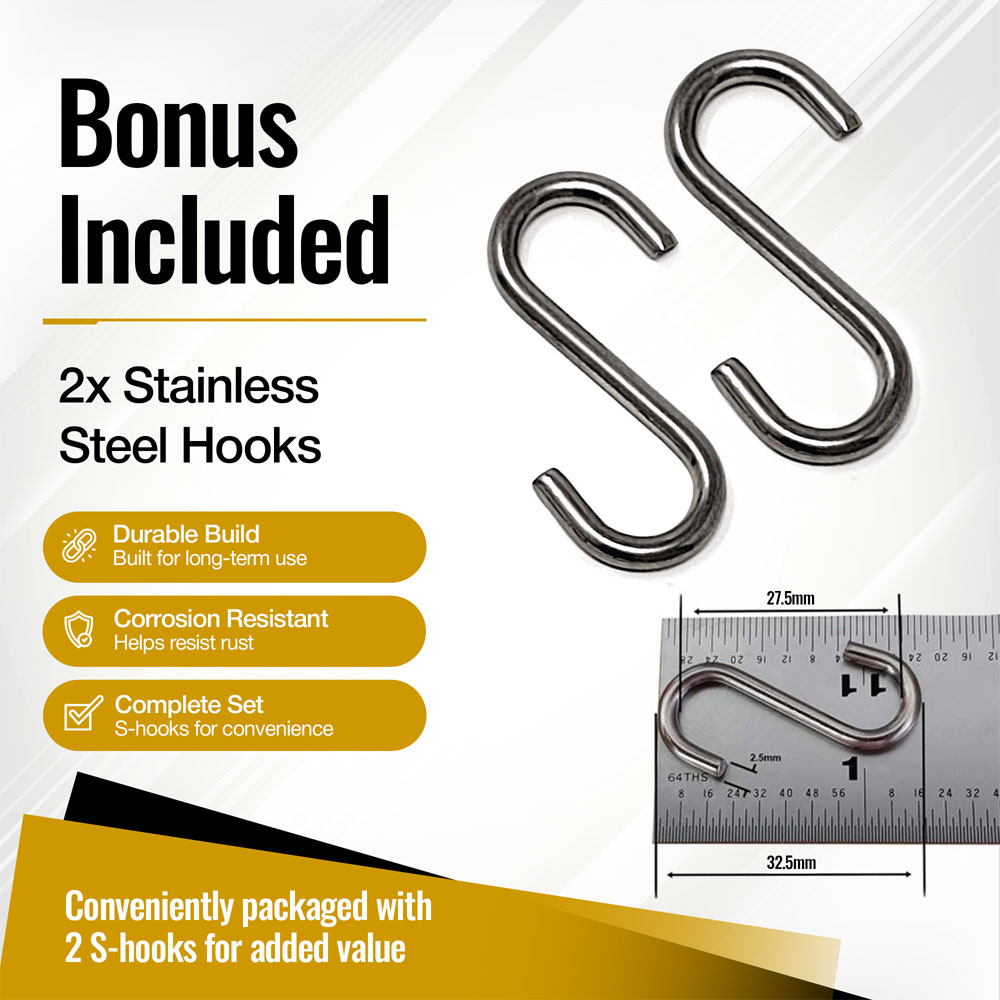

You will receive x2 Stainless Steel S Hooks with your Fusible Link. Most dampers do not require them, but some do.
Size:

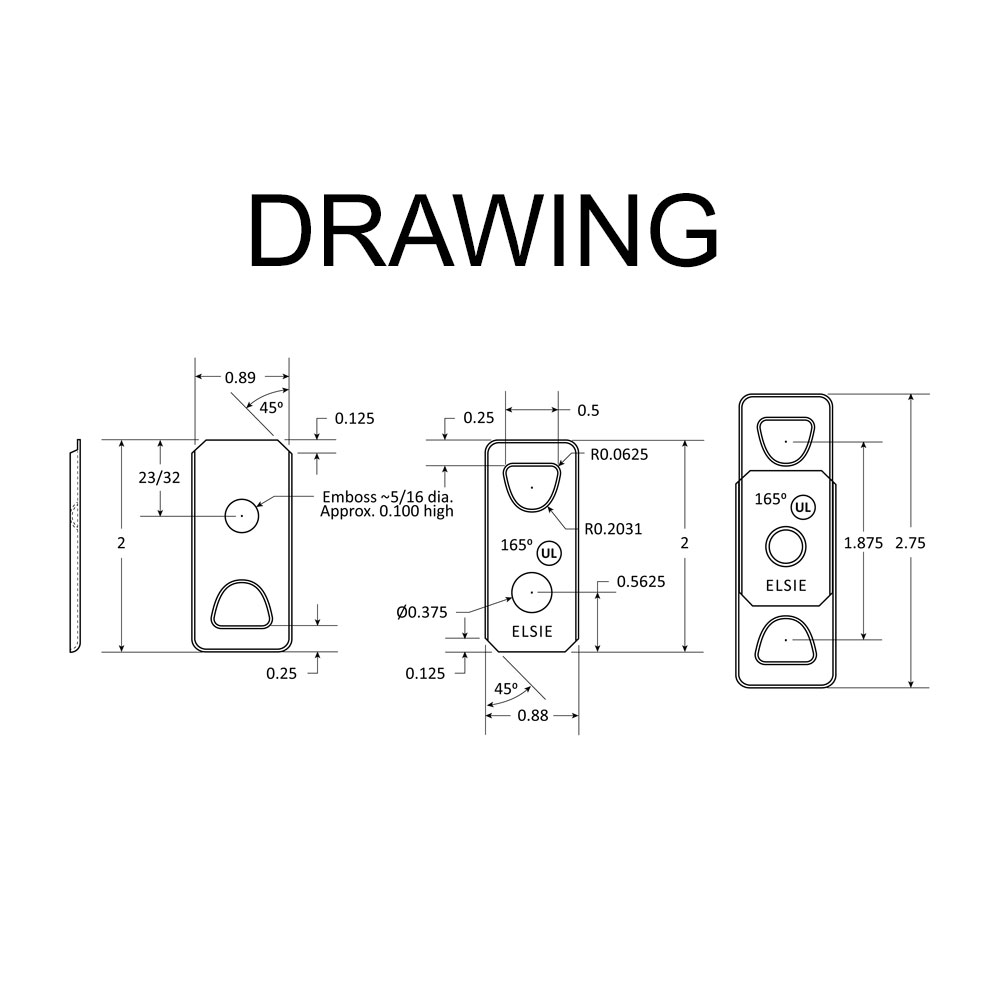

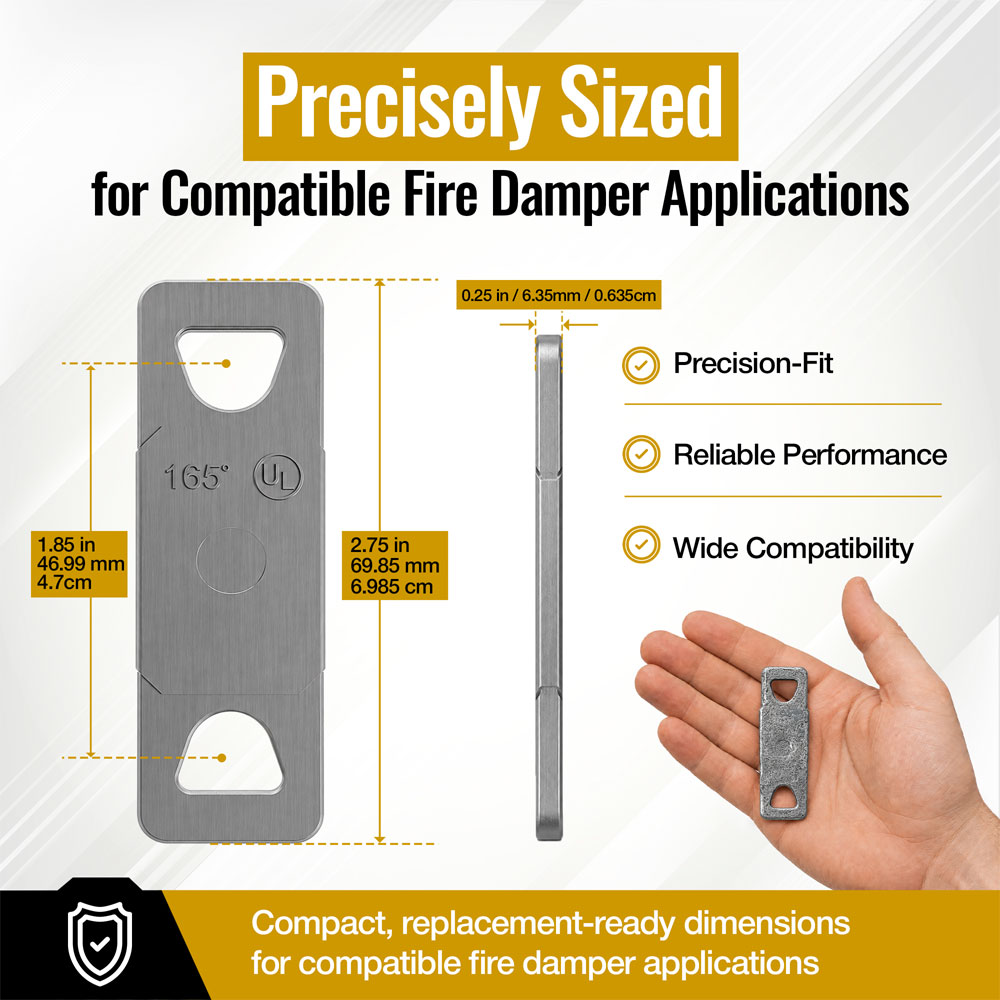

Length/Height: 2-3/4″ (2.75 Inches) Width: 57/64″ (.890 Inches) Distance Between Centers: 1.875 Inches

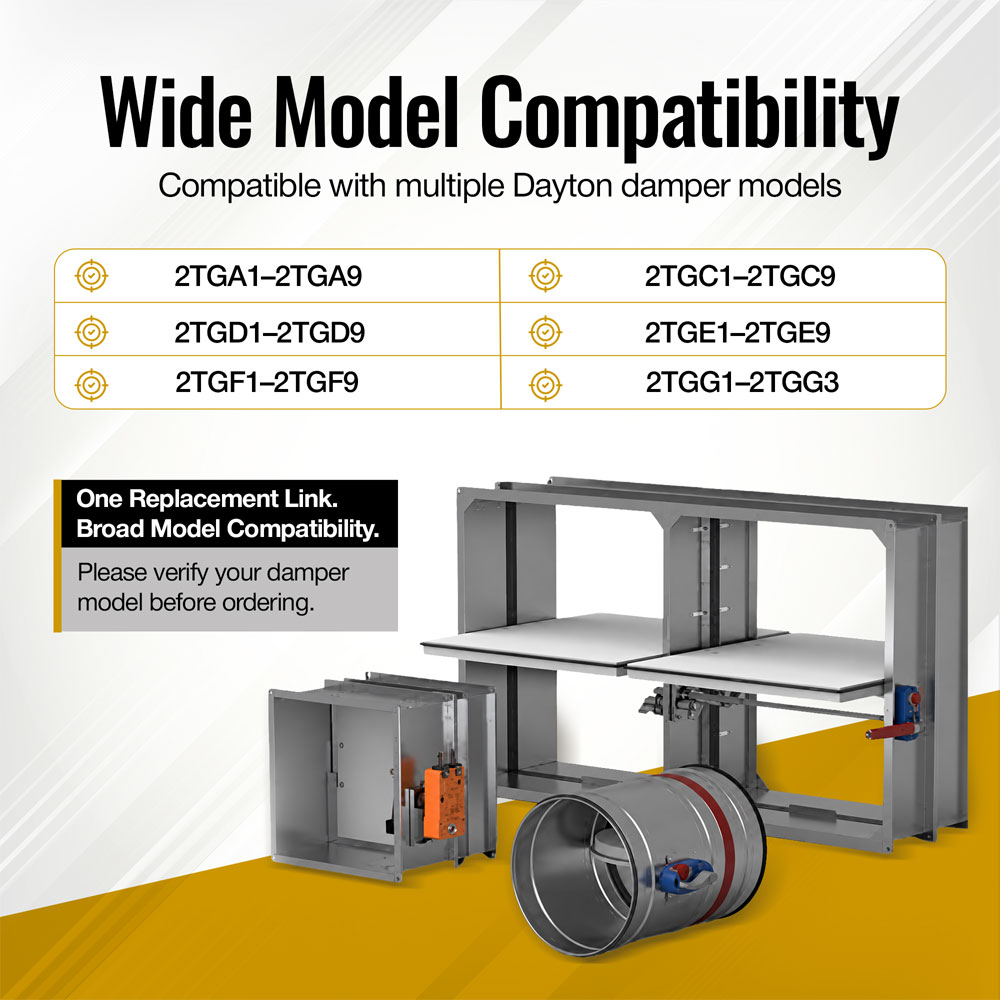

FITS THE FOLLOWING DAYTON FIRE DAMPERS:
2TGA1-2TGA9, 2TGC1-2TGC9, 2TGD1-2TGD9, 2TGE1-2TGE9, 2TGF1-2TGF9, 2TGG1-2TGG3 – Square and Rectangular Fire Damper, 165 Deg F
Fire dampers are made to protect the following:
– duct penetration
– transfer openings in fire rated walls
– barriers
– partitions
– floor & ceiling assemblies
– fire and smoke
Fire damper products are used in:
– heating and cooling equipment
– ventilation equipment and supplies
– air conditioning ducts diffuse
– HVAC and refrigeration
– shutters and louvers
Product information
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 2.75 × 0.89 × 0.15 in |
Jermaine Sones –
Perfect fit for my Dayton damper
